Audi A3, A5, Q5, A7 (B8), Volkswagen Passat, Golf, Tiguan, Jetta, and Skoda Vehicle Accessories

Description

Specifications

• Hign-concerned Chemical None Guiding Line Yes
• Lens Material Plastic + Glass Length of Video Cable 6M
• Shell Material Plastic Wire or Wireless Wire
• Alarm Type Vehicle Backup Cameras,ACCESSORIES,Rear Side Brand Name GreenYi
• Origin Mainland China Material ABS
• Waterproof Support IP67 Power DC 9V~15V
• TV System NTSC Illumination 0.1Lux
• Installation Location Vehicle Trunk Handle

Item guides & documents

User manual (PDF) View

Description

Report Item

Dynamic Trajectory CanBus Car Trunk Handle Rear View



Camera For Audi VW



The camera is not suitable for the following car systems:



* VW Golf 8 2020/2021 or later, Touran 2015+, VW or Skodas Panasonic radio.
* A6L, A7, A8 or Q8 on New MLB Platform, Audi A4, Q2 2017+, A3 8V 2015, And any S3.
* New MIB 3 radio, A3, Q3, A5, Q5, Q5L and A1 MIB 3 Platform from 2021 or 2022.

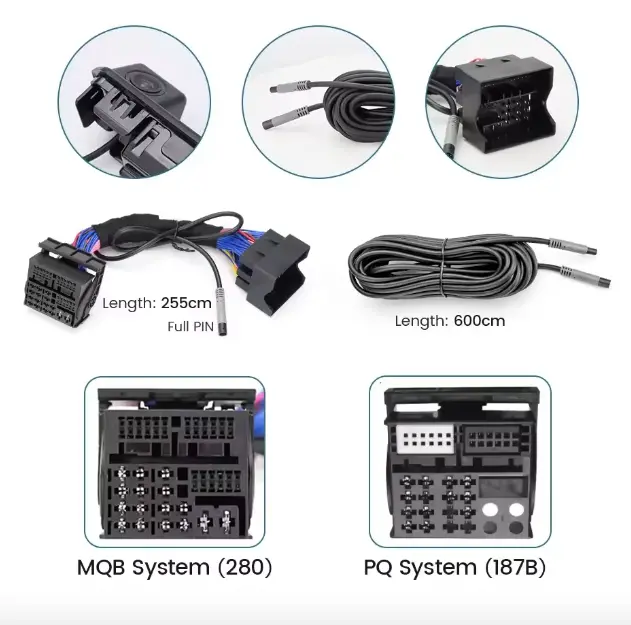

                    Canbus Dynamic Camera for Original MQB/PQ Screen

1. CANBUS Original vehicle data collection, real-time dynamic trajectory.

2. Installed in the Rear Trunk handle , 6m Video cable connection Stereo monitor, Reversing, the monitoring system automatically start working, you can clearly see the car Rear the situation.

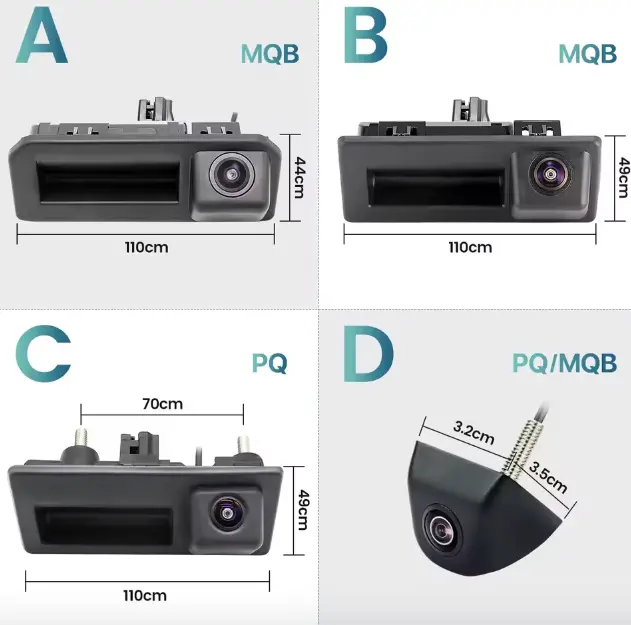

4 Camera Optional

Note:



The following car models are for reference only. Please check the size of your Trunk handle before purchasing, and then choose the suitable model for your original monitor.

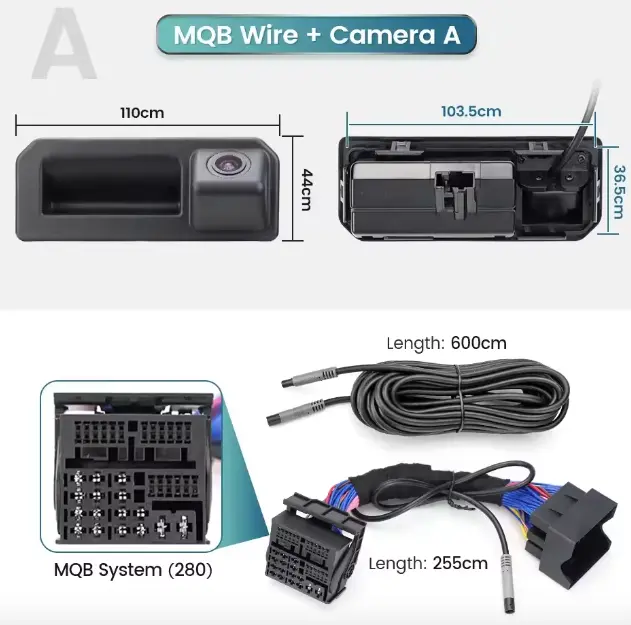

Camera A Fit For:

2019-2021 Bora
2019-2021 Tayron
2019-2021 Passat
2019-2021 Sagitar
2019-2021 Tharu
2019-2021 T-Cross
2017-2021 A5
2017-2021 Q5L
2017-2021 02L
2017-2021 Q3
2019-2021 Jetta VS5
2019-2021 Jetta VS7
2017-2019 Kodiaq
2017-2019 Kamiq
2017-2019 Karoq
Seat Arona 2018
280 Monitor MQB Platform

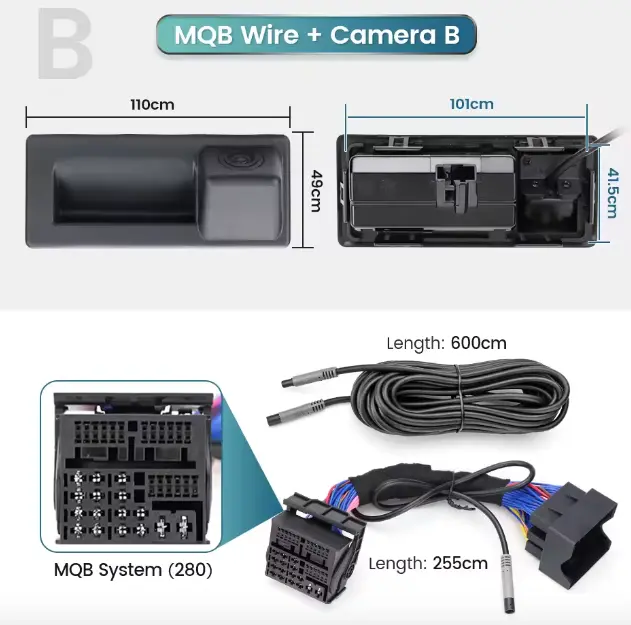

Camera B Fit For:

2016-2019 Superb
2017-2021 Octavia
2017-2021 A4L
2017-2021 A3
2017-2021 S3
2017-2021 Q7
2017-2021 Teramont
2017-2021 Touareg
2017-2021 Sharan
2017-2021 Tiguan
2017-2021 Tiguan L
2017-2021 C-TREK
2018-2021 Touran
2018-2021 Touran L
2018-2021 Lavida Plus
2016-2018 Sagitar
2016-2018 Passat
2017-2017 Lavida
Skoda octavia 3 combi 2013
280 Monitor MQB Platform

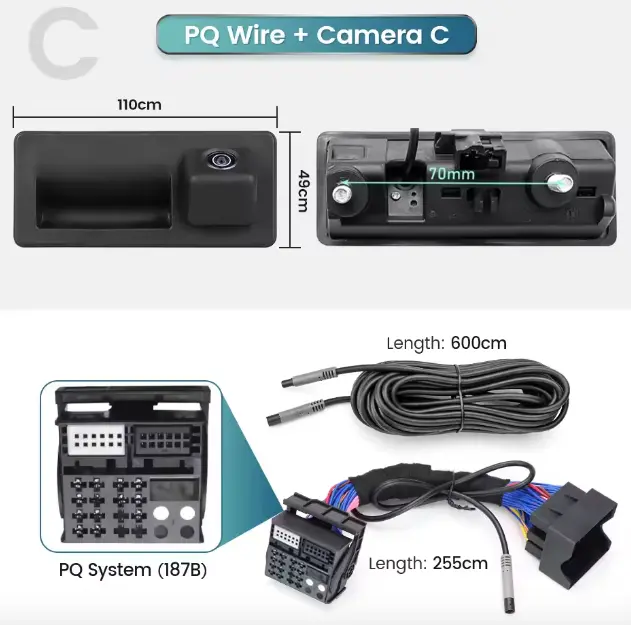

Camera C Fit For:

2014+ A3 8V in Europe (except Sportback MJ2016)
Audi A3 8V 2015+
Q7 2017-2019 etc
187B Monitor PQ Platform, Such as Old Sagitar, Old Passat etc.

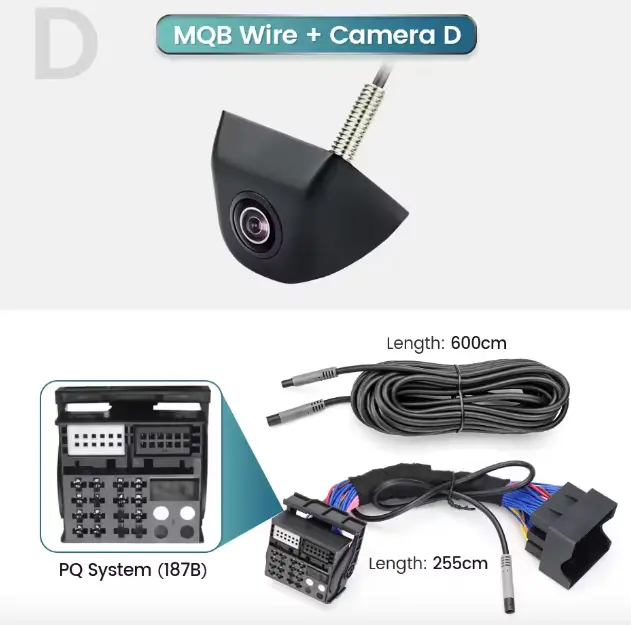

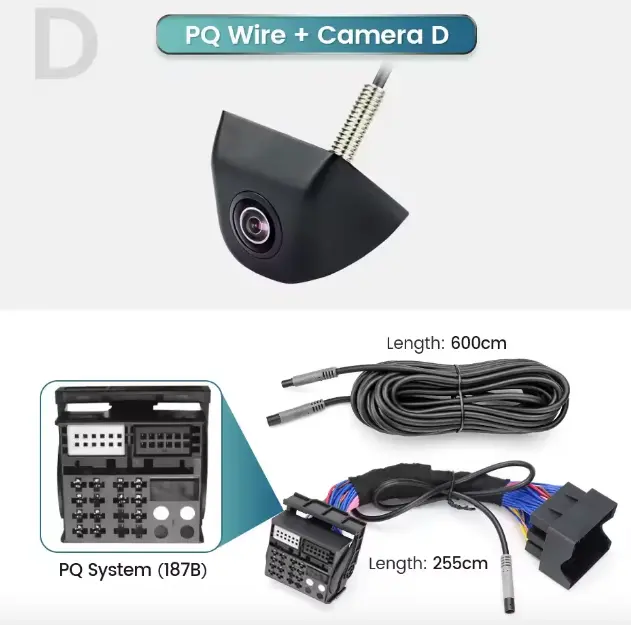

Camera D is Universal Camera for PQ/MQB Platform:

If you don’t want to replace the original car handle or license plate light, you can also choose this universal camera.

Installation Effect
