Description
Specifications
- Hign-concerned Chemical None Guiding Line Yes
- Lens Material Glass Length of Video Cable 6M
- Shell Material Plastic Wire or Wireless Wire
- Alarm Type Rear Side,ACCESSORIES,Vehicle Backup Cameras Brand Name GreenYi
- Origin Mainland China Viewing Angle 170°
- Material ABS Pixels 1080P Optional
- Video Signal AHD / CVBS Optional View Angle 170 Degree Optional
- Lens Fisheye 6 Glass Lens Optional Night Vision Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
- Power DC 12V~24V, 2A Waterproof Support
- TV System NTSC or PAL Chips HD Sony/OV2053HD
- Video Cable Material Pure Copper Working Temperature -30°C ~ +70°C
- Maximum Power 3W Model Number LS8004
Description
Report Item
Tip: because there may be slight differences between cars produced in different countries, please check the size before buying:
Fit for:
Ford Focus MK2 Mondeo MK4 S-Max C-Max Kuga MK1 Fiesta MK7
Rover Range Freelander 2
3 Cameras Style Optional

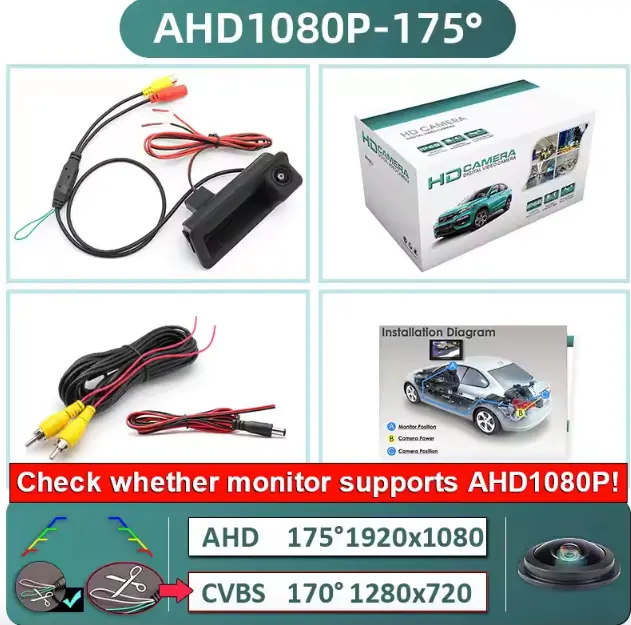

AHD1080P Camera
Analog High Definition Technologie
170° Wide Angle
Fisheye Lens – Real 170°
Top Starlight Night Vision
Starlight night vision function allows the camera to be used properly even at night.
Support Waterproof
The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions
Pure Copper 6m Video Cable
Compared to copper-clad aluminium cables, data is transmitted in pure copper cables with less signal loss.
Integrated Step-down Module
Support DC12V~24V,
Low power consumption, cable never hot, reduce fire risk.
Tips, About AHD Style: Adjustment to AHD signal via monitor settings is required before mounting the camera
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD
If your monitor don’t support AHD signal, please cut the white wire and change to CVBS signal.
If you don’t need camera parking line, please cut the green wire.

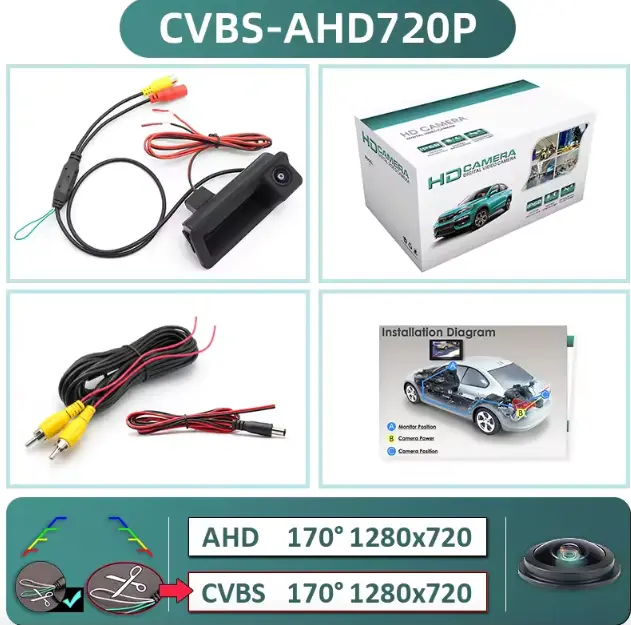

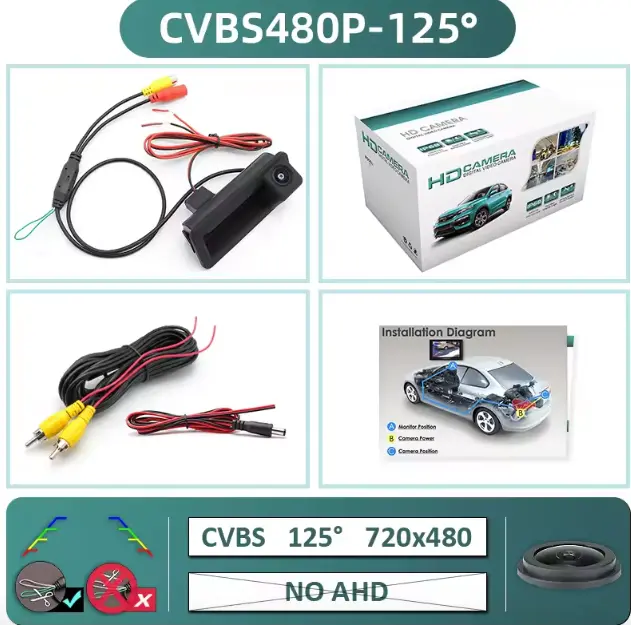

Package list
Installation Diagram
