Description
Specifications
- Guiding Line Yes Lens Material Glass
- Length of Video Cable 6M Shell Material Plastic
- Wire or Wireless Wire Alarm Type Vehicle Backup Cameras,ACCESSORIES,Rear Side
- Brand Name GreenYi Origin Mainland China
- Material ABS Pixels 1080P Optional
- Video Signal AHD / CVBS Optional View Angle 170 Degree Optional
- Lens Fisheye 6 Glass Lens Optional Night Vision Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
- Power DC 12V~24V, 2A Waterproof Support
- TV System NTSC or PAL Chips HD Sony/OV2053HD
- Working Temperature -30°C ~ +70°C Maximum power 3W
- SKU LS903
Item guides & documents
User manual (PDF) View
Description
Report Item
For Volkswagen:
Golf Passat B7 B5 Variant B6 Polo Tiguan T5 Jetta MK6 Caddy Touran Touareg Sharan
For Audi:
Audi A3 A4 B8 A6 C7 B6 Q3 Q5 Q7 Sportback A5 A4L A6L A8L S5 S3 RS6
For Porsche Cayenne
(These car model is for reference only, if your car model does not appear above, you can contact us and we will tell you which camera can fit your car)
3 Cameras Optional
AHD1080P Camera
Analog High Definition Technologie
170° Wide Angle
Fisheye Lens – Real 170°
Top Starlight Night Vision
Starlight night vision function allows the camera to be used properly even at night.
Support Waterproof
The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions
Pure Copper 6m Video Cable
Compared to copper-clad aluminium cables, data is transmitted in pure copper cables with less signal loss.
Integrated Step-down Module
Support DC12V~24V,
Low power consumption, cable never hot, reduce fire risk.
Tips, About AHD Style: Adjustment to AHD signal via monitor settings is required before mounting the camera
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD
If your monitor don’t support AHD signal, please cut the white wire and change to CVBS signal.
If you don’t need camera parking line, please cut the green wire.

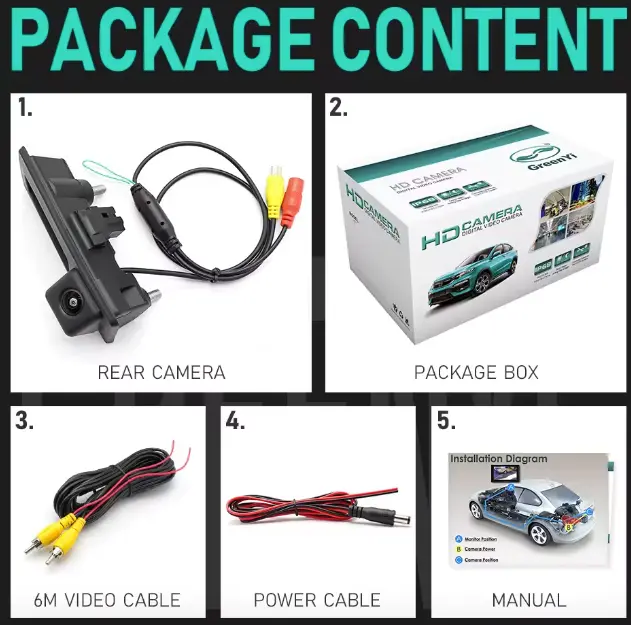

Package list
