Description

8-inch Installation Kit for Volkswagen platforms (MIB-PQ/Golf VI – Seat, Skoda and VW)

KIT-8VWTX303

The KIT-8VWTX303 includes all parts for mechanical fitting of an 8-inch Alpine X803D-U / X803DC-U Head Unit, as well as an interface that allows to retain the car’s air condition and heater control screens and the optical parking sensor display.

The interface also supports the vehicle’s radio display in the instrument cluster (MFD) and Steering Wheel Remote Control. An antenna adapter with phantom feed and a power Quadlock adapter are included as well. You can even directly connect the original VW / Skoda / Seat microphone and reversing camera with the wiring harness.

Designed for VW platforms (Seat, Skoda and VW)

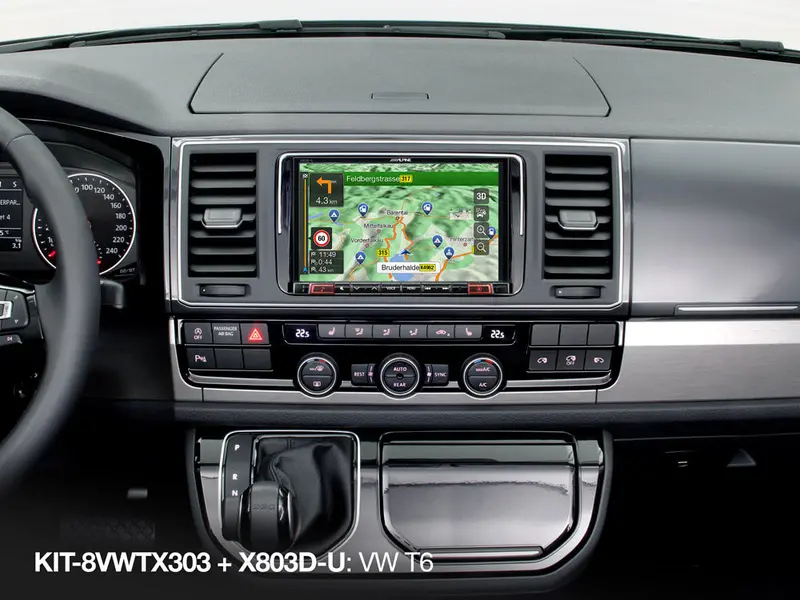

The KIT-8VWTX303, combined with the X803D-U or X803DC-U brings cutting edge multi-media / navigation into your compatible Volkswagen, Seat or Skoda vehicle. It allows perfect integration of a compatible Alpine Head Unit in your vehicle and includes all required parts.

Retains Steering Wheel Controls

If your car is equipped with original parking sensors, you can continue to use this convenient feature when upgrading to an Alpine Head Unit. The parking sensor system is connected to your Alpine screen, showing a convenient distance display.

Retains Driver Information Display

The small display in the instrument cluster (MFD) is also connected to the Alpine system and can display radio station names, song titles and artist information, caller names and much more. Navigation turn-by-turn arrow support in the MFD will become enabled for the X803D-U / X803DC-U in early 2024. Please ask you Alpine dealer for further information.

Retains Parking Sensors Display

If your car is equipped with original parking sensors, you can continue to use this convenient feature when upgrading to an Alpine Head Unit. The parking sensor system is connected to your Alpine screen, showing a convenient distance display.

Retains Air Condition Display

The Head Unit gives you visual feedback for the selected temperature of driver and co-driver, AC status, seat heating level, selected air vents and more. This screen will automatically appear for a few seconds when any of the named settings is changed to give the driver feedback.

Compatible with Original VW Reversing Camera

You can continue to use your original Volkswagen reversing camera with the KIT-8VWTX303. Note: Not compatible with original RGB cameras.

Compatible with Original VW Microphone

The KIT-8VWTX303 is compatible with your original Volkswagen hands-free microphone. This makes the installation faster and cleaner, since no additional microphone has to be installed.

General:

• Compatible with VW platforms (MIB-PQ – Seat, Skoda and VW)
• Steering wheel remote control interface with CAN to analogue conversion, retention of original car menu, addition of HVAC (Heating, Ventilation and Air Conditioning) and OPS (Optical Parking Sensor) screens and SIRI support.
• Power Quadlock adapter inclusive
• Supports original vehicle microphone and rear camera ²⁾
• Includes antenna adapter with phantom feed

Compatible Cars

Maker¹⁾ Model Model year Volkswagen Amarok (2H) 03/2010 – 08/2016 Volkswagen Beetle (5C) 11/2011 – 05/2016 Volkswagen Caddy (2K / 2KN) 2010 – 05/2015 Volkswagen CC (3CC) 01/2012 – 11/2016 Volkswagen EOS (1F) 05/2006 – 05/2015 Volkswagen Golf VI (1K / 1KM) 11/2008 – 04/2013 Volkswagen Golf VI Cab. (1K / 1KM) 06/2011 – 2016 Volkswagen Golf Plus Facelift 01/2009 – 2014 Volkswagen Jetta VI (16) 01/2011 – 2016 Volkswagen Passat CC (35) 06/2008 – 2012 Volkswagen Passat B7 (36) 11/2010 – 10/2014 Volkswagen Polo V (6R) 03/2009 – 04/2014 Volkswagen Scirocco III (13) 08/2008 – 2017 Volkswagen Sharan II (7N) 09/2010 – 2017 Volkswagen T5 Facelift (7 H/E/J) 09/2009 – 06/2015 Volkswagen T6 (7 H/E/J) 07/2015 – 09/2019 Volkswagen Tiguan (5N) 04/2007 – 2015 Volkswagen Touran (1T / GP / GP2) 2010 – 04/2015 Skoda Fabia II (5J) 2010 – 10/2014 Skoda Octavia II (1Z) 01/2009 – 2013 Skoda Rapid (NH) 10/2012 – 03/2015 Skoda Roomster (5J) 2010 – 04/2015 Skoda Superb II (3T) 07/2008 – 06/2015 Skoda Yeti (5L) 08/2009 – 2015 Seat Alhambra (7N) 10/2010 – 2015 Seat Leon (1P/1PN) 03/2009 – 10/2012 Seat Toledo (KG) 03/2013 – 2015

¹⁾ Only for cars with white MFD (Multifunctional display). Not compatible with radios with CAR button.

²⁾ No support for original RGB cameras

Note: For cars with white MFD, if the car was not equipped with a screen before, it may be necessary to program the vehicle in order to enable the visualisation. Please consult with an authorised dealer or service workshop.

IM_KIT-8VWTX303_EN_ALL.pdf

QRG_APF-X303VW_KIT-8VWTX303_KIT-7VWX303_ALL.pdf
