Description

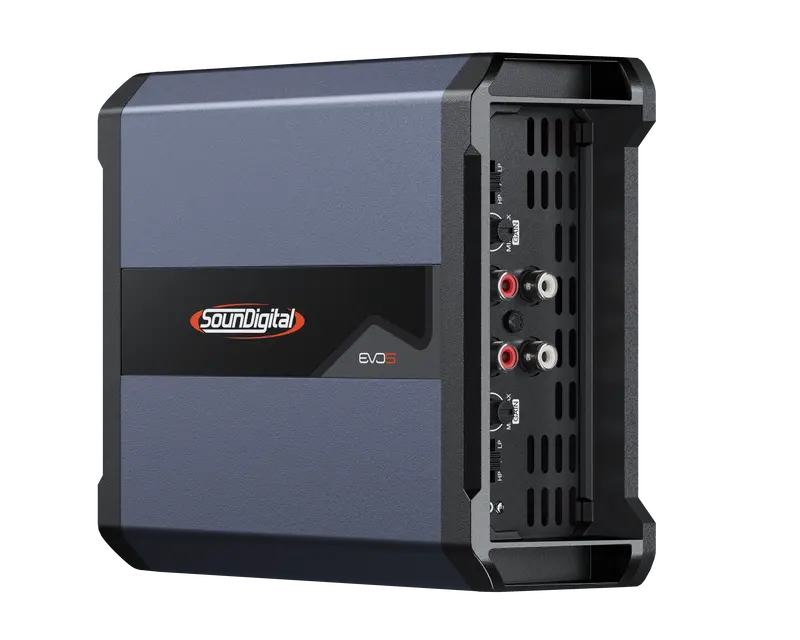

1200.4 EVO 5

The 1200.4 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power distributed over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Available in:

• 4 Ohm
• 2 Ohm

General Specifications

+

• 1200.4 EVO 5 – 2 OHMS

  Power @ 1Ω: 4 X 300 WRMS
  Power @ 2Ω: 4 X 198 WRMS
  Power @ 4Ω: 4 X 130 WRMS
  Bridge Power @ 2Ω: 2 X 600 WRMS
  Bridge Power @ 4Ω: 2 X 396 WRMS

• 1200.4 EVO 5 – 4 OHMS

  Power @ 1Ω: N/A
  Power @ 2Ω: 4 X 300 WRMS
  Power @ 4Ω: 4 X 198 WRMS
  Bridge Power @ 2Ω: N/A
  Bridge Power @ 4Ω: 2 X 600W RMS

• Frequency Response (-3dB):

  5Hz ~ 22kHz

• Low Pass Filter (12dB/oct):

  80Hz

• High Pass Filter (12dB/oct):

  80Hz

• Operating Voltage:

  10V ~ 16V

• SNR:

  87dB

• Input Sensitivity (RCA):

  0.2V ~ 2V

• Current Draw (music):

  59A

• Current Draw (max.):

  118A

• Total Efficiency:

  81%

• Damping Factor:

  200

• Power Cable:

  16mm² (5 AWG)

• Speaker Cable:

  2 x 2mm² (14 AWG)

• Recommended Fuse (music):

  80A

• Recommended Battery (minimum):

  80Ah

• Width:

  6.7″ / 12.1 cm

• Length:

  5.4″ / 17 cm

• Height:

  2.2″ / 5.48 cm

• Weight:

  2.36 lb / 1,07 kg
