Description

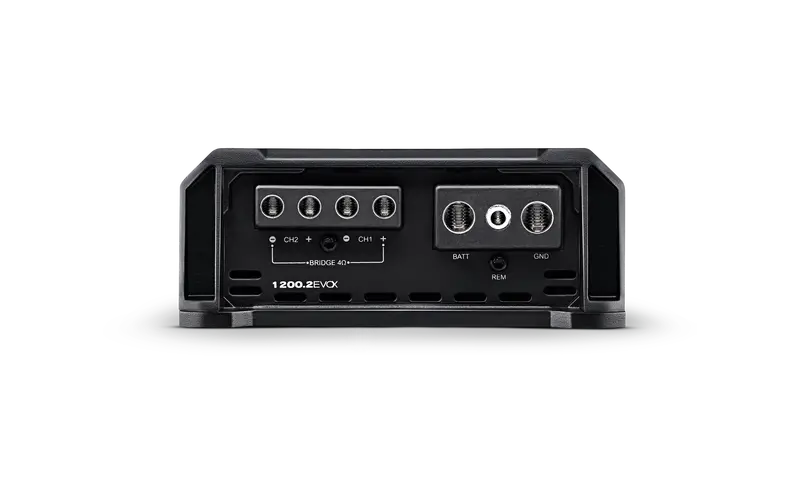

1200.2 EVOX2

The 1200.2 EVOX2 is a compact, modern amplifier that delivers 1200W RMS of power over 2 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Available in versions:

• 2 Ohm
• 4 Ohm

General Specifications

+

• 1200.2 EVOX2 – 2 OHMS

  Power @ 1Ω: 2 X 600 WRMS
  Power @ 2Ω: 2 X 396 WRMS
  Power @ 4Ω: 2 x 261 WRMS
  Bridge Power @ 2Ω: 1 X 1200 WRMS
  Bridge Power @ 4Ω: 1 X 792 WRMS

• 1200.2 EVOX2 – 4 OHMS

  Power @ 1Ω: N/A
  Power @ 2Ω: 2 x 600 WRMS
  Power @ 4Ω: 2 x 396 WRMS
  Bridge Power @ 2Ω: N/A
  Bridge Power @ 4Ω: 1 x 1200 WRMS

• Frequency Response (-3dB):

  5Hz – 22kHz

• Low Pass Filter:

  45Hz ~ 850Hz

• High Pass Filter:

  45Hz ~ 850Hz

• Operating Voltage:

  8V ~ 16V

• SNR:

  2Ω: 88 dB
  4Ω: 90 dB

• Input Sensitivity:

  0.2V ~ 4V

• Current Draw (Music):

  47A

• Current Draw With Resistive Load:

  94A

• Total Efficiency:

  88%

• Damping Factor:

  200

• Power Cable:

  16mm² (5 AWG)

• Audio Output Cable:

  2 x 2.5²mm (13AWG)

• Recommended Fuse (Music):

  60A

• Recommended Battery (Minimum):

  70Ah

• Width:

  5.4 in / 13,6 cm

• Length:

  7.1 in / 18,1 cm

• Height:

  2.2 in / 5,5 cm
