Description

TS-WX400DA

9″ x 5-1/2″ – 250w Max Power, Built-in Class-D Amplifier – Compact Active Subwoofer

• 250 Watts Max Power
• 100 Watts Nominal
• High Power Built-in Class-D Amplifier
• Selectable Bass Modes: DEEP and DYNAMIC
• Compact Design


  With Class-D amplifier technology, the subwoofer generates 250W maximum power, consuming power at levels lower than conventional amplifier designs and reducing the need for a large, traditional heat sink. The result is a compact, easy to install amplifier which in some vehicles requires no direct battery connection.

  Selectable “BASS MODE”

  TS-WX400DA features two selectable Bass Modes: DEEP and DYNAMIC, producing strong, rich, deep bass you can feel. You can easily control and customize the bass output from the supplied wired remote control.

  DEEP Mode: Achieve rich, deep bass sound quality in the car. Suitable for Classic, Jazz, Country Music, etc.

  DYNAMIC Mode: Emphasize powerful, strong and dynamic bass sound in the car. Suitable for EDM, Hip-Hop, Rock Music, etc.




  Easy Installation

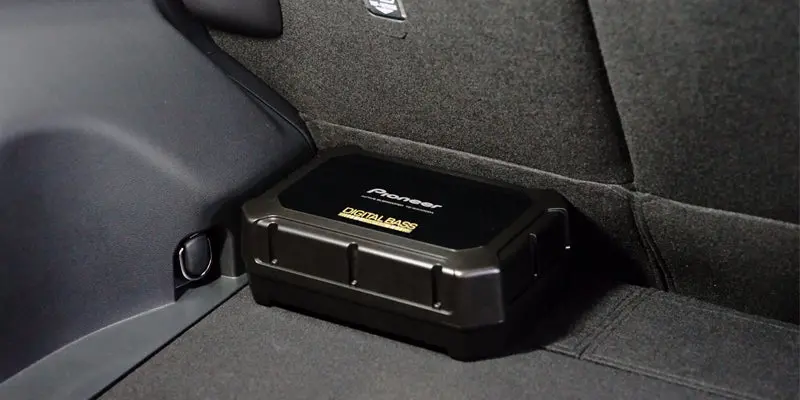

  The TS-WX400DA is a uniquely compact speaker that allows installation in a wide range of vehicle applications. Installing the subwoofer under seats, and in small spaces is ideal for this powered subwoofer.

  What’s in the Box

  • Powered subwoofer
  • Wired remote control with attached 16.25′ cable
  • 16.5′ Power harness w/ inline 10A mini fuse (62″ ground lead / 8″ RCA input plugs)
  • 2 Mounting plates
  • 1 Cable strain-relief bar
  • Two 3/4″ screws
  • Two 1/2″ screws
  • Two 1/4″ screws
  • 1-1/2″ Hook-and-loop fastener pad
  • Instruction manual
  • Warranty sheet

  KEY FEATURES

  • System TypePowered
  • Sensitivity (1W/1m)DEEP:72 dB, DYNAMIC:73 dB
  • Frequency RangeDEEP: 20 Hz to 100 Hz, DYNAMIC: 20 Hz to 100 Hz
  • CTA-2031 CompliantYes
  • Warranty1 Year
  • Continuous Power handling (RMS) – Watts100 Watts
  • Maximum Peak Power Handling – Watts250 Watts
  • Built In AmpYes
  • Amp Max Power Output250 Watts
  • Amp RMS Output100 Watts
  • Input Level (@ Gain Max) RCADEEP 85 mV+85 mV/22 kOhm, DYNAMIC 75 mV+75 mV/22kOhm
  • Input Level (@ Gain Max) Speaker LineDEEP 1.9 V+1.9 V/5 kOhm, DYNAMIC 1.7 V+1.7 V/5kOhm
  • Power SourceDC 14.4V
  • Amp Max Current Consumption9.4 A
  • Amp GroundingNegative

  BUILD

  • ShapeSpecial
  • Size9″ x 5-1/2″
  • Cone MaterialIMPP – Composite
  • Drive Cone MaterialABS
  • Surround MaterialUrethane
  • Surround TypeRolled
  • Basket MaterialStamped Metal
  • Magnet MaterialFerrite
  • Magnet Weight26.8 oz
  • Voice Coil TypeSingle Voice
  • Voice Coil BobbinKapton
  • Voice Coil Special FeatureCopper
  • Voice Coil wireAramid
  •


    Pioneer Self-Powered Subwoofer Lineup 2020

    WATCH

  • Owner’s Manual
  • Limited Warranty
