Description
Key Features Speakers
| Frequency response: | 25 Hz – 28,000 Hz |
|---|---|
| Impedance: | 4 Ω |
| Maximum input power: | 170 W |
| Nominal input power: | 35 W |
| Sensitivity: | 89 dB |
| Series: | Custom Fit |
| Tweeter Diameter Size: | 30_mm |
| Diameter Size: | 17 cm |
| Dimensions: | 165 mm x 53 mm |
| IMPP™ Composite Cone: | |
| Magnets: | Ferrite |
| Tweeter material: | PEI |
| Woofer material: | Polypropylene (PP) |
Other Specifications speakers
| Accessories: | Easy connector |
|---|---|
| Cut-out Hole: | 147 mm |
| Included connector for: | Renault, Opel, Volkswagen, Peugeot, Citroen, Kia, Hyundai |
| Mounting Depth: | 46 mm |
| Speaker Grill: | Not Included |
| Weight: | 0.60 kg |
Manuals
Installation Manual
| Languages | Download |
|---|---|
| English, French, German, Italian, Portuguese, Russian, Spanish | Download |
Compliance Document
| Document type | Download |
|---|---|
| UK Declaration Of Conformity | Download |
| EU Declaration Of Conformity | Download |
Component Speakers – Component speakers not only reproduce the audio signal more accurately, but also increase the listener’s control over the audio signal.

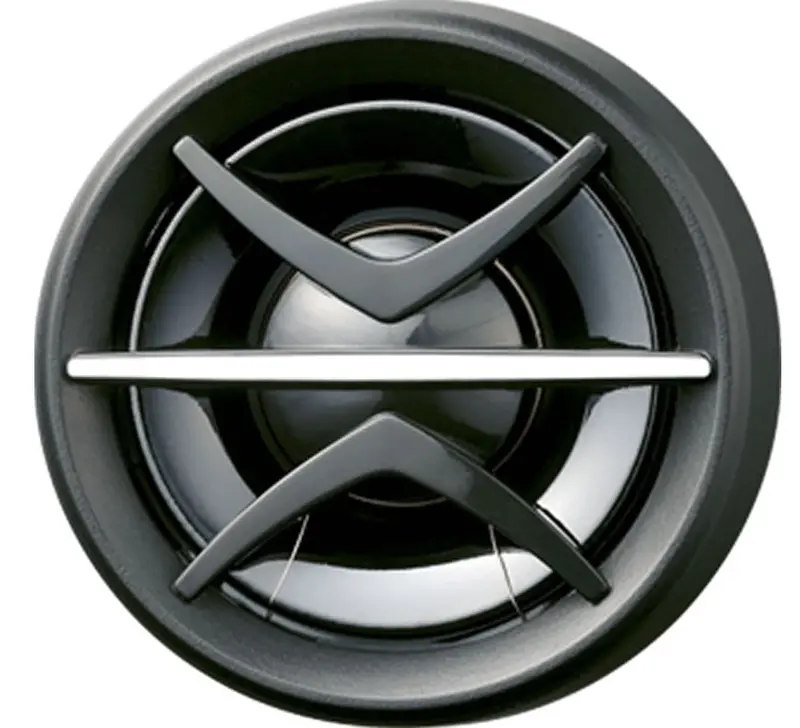

IMPP™ Cone – Pioneer’s rigid and lightweight Injection Moulded Polypropylene Composite (IMPP™) Cone for improved clarity and reduced distortion.
