Description
2-Channel Bridgeable Amplifier (1000W)

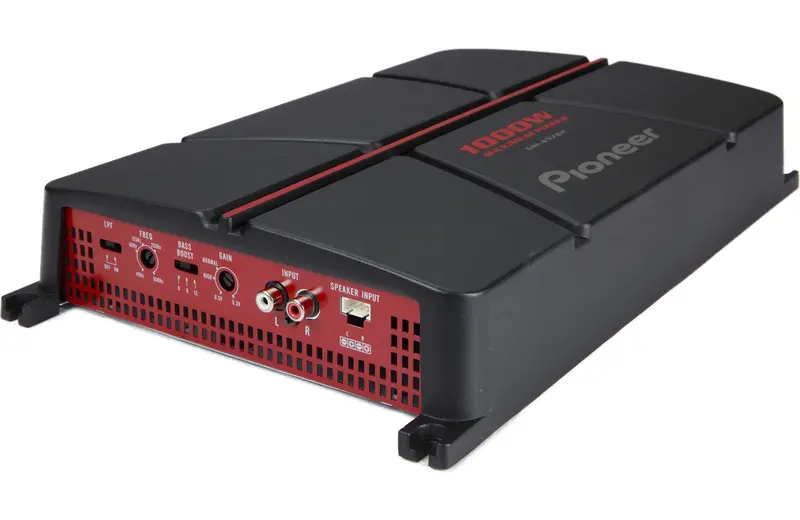

A combination of great design and massive power, the GM-A4704 amplifier gives you total installation freedom and no distortion. With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for.
This 4-channel amp allows you to drive multiple speakers and subwoofers, it’s also bridgeable to power a single sub.
Specifications
| Chassis size (W x H x D) | 356(W) X 60(H) X 215(D) mm |
| Unit weight | 2.2 |
| Maximum power | 1000W (Bridged) or 2 x 300W (4 Ω) or 2 x 500 W (2 Ω) |
| CEA 2006 Power | 2 x 150W (4 Ω) |
| Continuous power output | 2 x 150W (4 Ω) or 1 x 480W (4Ω bridged) or 2 x 240 W (2 Ω) |
| Load impedance capability | 2-8 ohm allowable (stereo) |
| Frequency response | 10Hz ~ 70kHz (+0dB , -3dB) |
| Distortion | < 0.05 % |
| S/N ratio | > 96 dB |
| Bass Boost | 50Hz; 0/6/12dB |
| LPF | 40-500 Hz (-12 dB/oct) |
| Speaker Terminals | Screw-type |
| Speaker Input Level | 3 – 26 V |
| Max. current consumption | 36A |
