Description

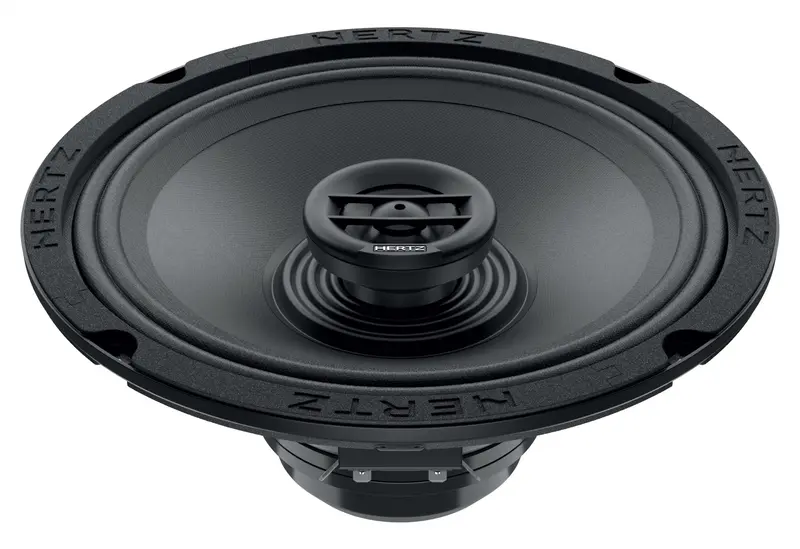

SX 200 NEO200 (8) mm (in.) | 82,8 (3.26) mm (in.) | Spl Coaxial | 260 W | 4 Ohm
Totally new NEO SPL coaxial SX 200 NEO cone is made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance. SX 200 NEO features a large Hi-SPL 1.4” PEI dome tweeter with resettable solid-state protection circuit and a protective rubber gasket for high SPL and a safe outdoor use.
| Component | SPL COAXIAL |
| Size mm (in.) | 200 (8) |
| Power Handling – Continuous W | 130 |
| Power Handling – Peak W | 260 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 82,8 (3.26) |
| Tweeter diaphragm mm (in.) | PEI |
| Woofer Voice Coil Ø mm (in.) | 38 (1.5) |
| Tweeter Voice Coil Ø mm (in.) | 28 (1.1) |
| Frequency Response Hz | 100 ÷ 20k |
| Woofer Magnet size D x d x h mm (in.) | 80 x 50 x 6 (3.15 x 1.97 x 0.24) |
| Tweeter Magnet size D x h mm (in.) | 19 x 3 (0.75 x 0.12) |
| Weight of one speaker kg (lb.) | 1,32 (2.91) |
| Woofer Magnet | Special Neodymium N38 H |
| Tweeter Magnet | Special Neodymium N38 H |
| Cone | Water repellent pressed paper |
| D mm | 168 |
| Xmax mm | 2,7 |
| Re Ohm | 3,3 |
| Fs Hz | 103 |
| Le mH | 0,07 |
| Vas I | 9,70 |
| Mms g | 17 |
| Cms mm/N | 0,14 |
| BL T*m | 8,2 |
| Qts | 0,51 |
| Qes | 0,54 |
| Qms | 8,9 |
| Spl dB | 99,5 |
Physical Specs
| A | 208 mm | 8.19 in. |
| B | 182,7 mm | 7.19 in. |
| C | 96,2 mm | 3.79 in. |
| D | 82,8 mm | 3.26 in. |
Frequency response
