Description

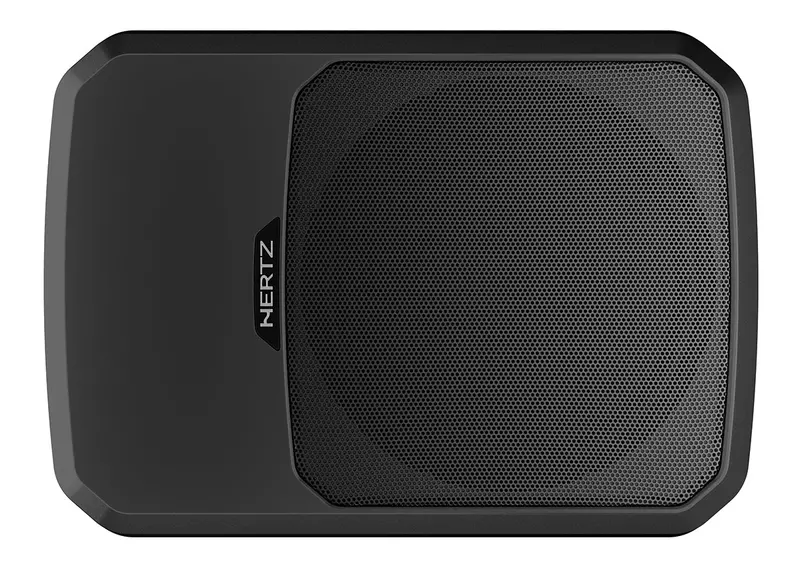

DBA 201 F
200 (8) mm (in.)
440 W 0.4 Ohm
Super Flat Sealed
High performance in a super flat design
Watch the product video
The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.
Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 F to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 F and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.
Auto turn-on and standby mode
The built-in audio sense circuit allows the DBA 201 F to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.
| Size mm (in.) |
200 (8) |
| Power Handling – Continuous W |
220 |
| Power Handling – Peak W |
440 |
| Impedance Ohm |
0.4 |
| Design |
Super Flat Sealed |
| Voice Coil Ø |
38.6 (1.52) mm (in.) |
| Frequency Response Hz |
32 ÷ 400 |
| Magnet size D x d x h mm (in.) |
110 x 45 x 17 (4.33 x 1.78 x 0.67) |
| Weight of one component kg (lb.) |
4.3 (9.48) |
| Magnet |
High Density Flux Ferrite |
| Cone |
Pressed paper |
| Voice Coil Type |
Copper |
Technical Specs
| Operating voltage VDC (Fuse) |
6.5 ÷ 18 (15A) |
| Start – Stop voltage VDC |
6 |
| Idling current A (Power OFF) |
260 m (1 m) |
| Consumption @ 14,4 VDC Max musical power A |
8.5 |
| Remote IN Turn on VDC (Current) |
4 (1 mA) |
| PRE input signal Turn ON VRMS |
10 mV |
| SPK input DC Turn ON VDC |
2 |
Power Supply
| Distortion – THD @ 100 Hz % |
0.15 |
| Bandwidth Hz |
15 – 150 |
| S/N ratio dBA |
100 |
| Output power (RMS) @ 14,4 VDC, 1% THD W |
220 |
Amplifier Stage
| PRE input signal VRMS (impedance) |
0.2 ÷ 5 (10kΩ) |
| SPK input signal VRMS (impedance) |
1.2 ÷ 30 (6Ω) |
| LO-PASS Filter @ 24 dB Oct adjustable Hz |
50 ÷ 150 |
| Subsonic Filter @ 24 dB Oct Fixed Hz |
15 |
| Phase switch |
0 / 180° |
| Bass Boost @45 Hz dB |
0 ÷ 6 |
| Sub remote volume control dB |
0 ÷ -15 (HRC 01 included) |
Signals Inputs / Filter
Physical Specs
|
mm |
in |
| A |
345 |
13.58 |
| B |
245 |
9.64 |
| C |
79 |
3.11 |
