Description

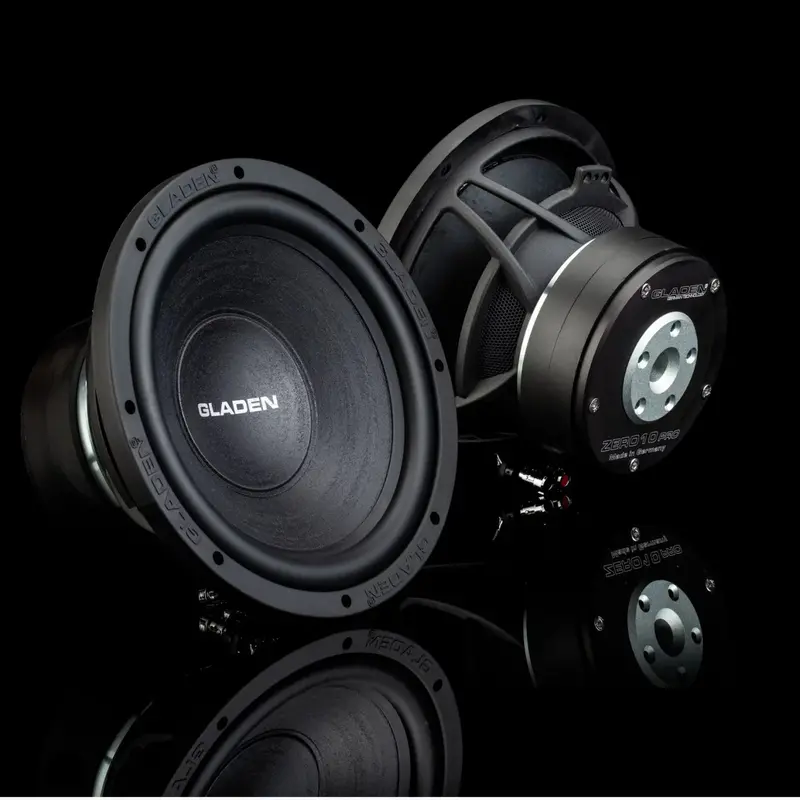

Gladen Zero 10 Pro

• 25 cm / 10″
• 600 / 400 Watts
• 4 Ohm impedance

Overview Gladen Zero 10 Pro

• High-end subwoofer
• Cast aluminum basket
• Nomex spider
• Lasered back plate
• Stitched strands
• GLADEN PFP technology: paper / foam / paper compound diaphragm
• Made in Germany

---

Technical data Gladen Zero 10 Pro

Material:

• Cone:

  PFP

• Surround:

  Rubber

• Basket:

  Aluminum

• Spider:

  Nomex

• Coil former:

  Aluminium

• Dust Cap:

  Paper

---

Specifications:

• Power:

  Pe 400/600 RMS/Nom

• DC resistance:

  R_dc 3,4 Ω

• Nominal impedance:

  Z_N 4 Ω

• Resonance frequency:

  f_s 30 Hz

• Voice coil diameter:

  2,5 inch

• X-Max:

  +/- 12,5 mm

• Mechanical Q factor:

  Q_ms 7,34

• Electrical Q factor:

  Q_es 0,49

• Total Q factor:

  Q_ts 0,46

• Moving mass:

  m_d 98,57 g

• Effective piston area:

  S_d 346 cm²

• Mechanical resistance:

  R_ms 2,77 kg/s

• Compliance:

  C_ms 0,28 mm/N

• Force factor:

  BL 10,9 Tm

• Equivalent air volume:

  Vas 47,25 dm³

• SPL 2,83V/1m:

  90 dB

• External diameter:

  260 mm / 10,24 inch

• Installation diameter:

  236 mm / 9,29 inch

• Installation depth:

  149 mm / 5,87 inch

• Magnet diameter:

  155 mm / 6,10 inch

---

Download

Datsheet Gladen Zero 10 Pro (PDF)
