Description

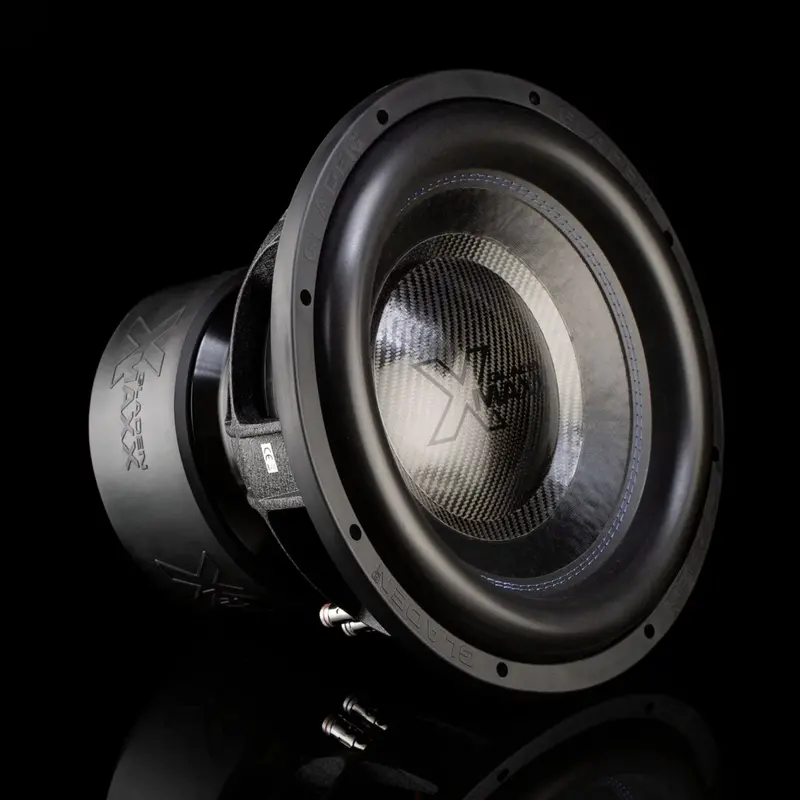

Gladen X-Maxx 15

• 38 cm / 15″ subwoofer
• 2 x 1250 / 1875 Watts
• 2 x 1 Ohm impedance
• 4″ flat wire voice coil

---

Overview Gladen X-MAXX 15

• Low bass long excursion subwoofer
• 4″ flat wire voice coil, 4 ply, made in USA
• 4-ply nomex center spider
• Carbon fiber dust cap
• Paper cone
• Extra wide long excursion foam surround
• 80 mm ferrite magnet system (quad stack)

---

Technical data Gladen X-MAXX 15

Material:

• Cone:

  Paper

• Spider:

  Nomex

• Surround:

  Foam

• Coil former:

  Aluminium

• Basket:

  Aluminum

• Dust Cap:

  Carbon

---

Specifications:

• DC resistance (Rdc):

  2 x 0,9 Ω

• Nominal impedance (ZN):

  2 x 1 Ω

• Resonance frequency (fs):

  32,2 Hz

• Voice coil diameter:

  100 mm

• Mechanical Q factor (Qms):

  5,60

• Electrical Q factor (Qes):

  0,56

• Total Q factor (Qts):

  0,51

• Moving mass (Mms):

  464,3 g

• Effective piston area (Sd):

  830 cm²

• Mechanical resistance (Rms):

  16,8 kg/s

• Compliance (Cms):

  0,05 mm/N

• Force factor (BL):

  17,3 Tm

• Equivalent air volume (Vas):

  46,4 dm³

• Efficiency (η):

  0,27 %

• SPL 2,83V/1m:

  86,2 dB

---

Download

Datasheet GLADEN X-MAXX 15 (PDF)
