Description

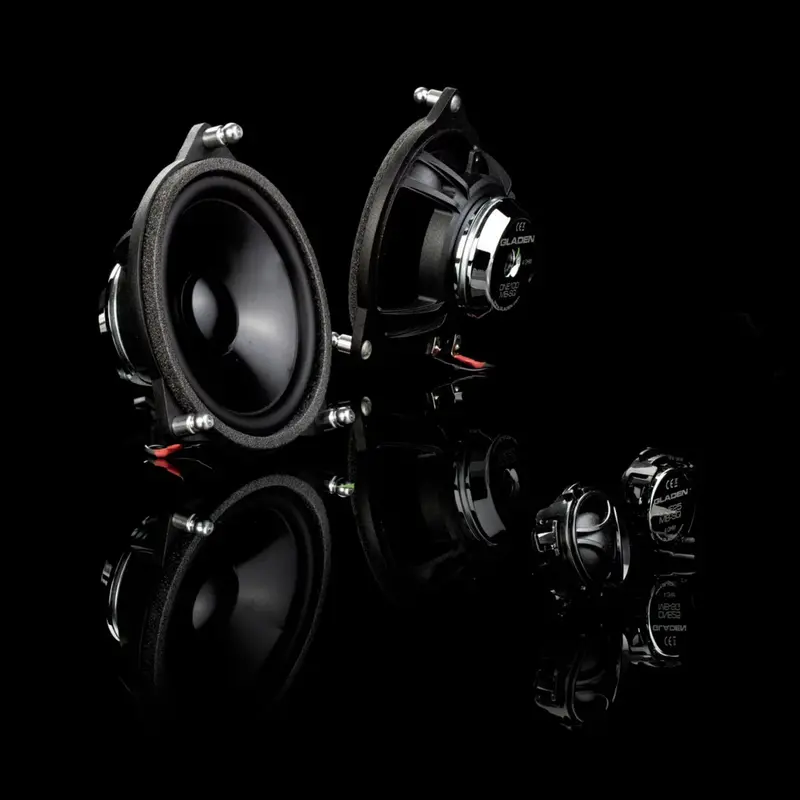

Gladen One 100.2 MB-SQ

• 100 mm speaker system
• 2 x 120 Watts **
• 3 Ohm impedance
• 25 mm tweeter
• Crossover

Perfection is a matter of details. For this reason, we have carefully selected and acoustically optimized all components of the Mercedes SQ speakers. In order to meet the high demands of a sound quality loudspeaker, we use an air-dried paper membrane in the woofer area, an aluminum membrane in the midrange and a light silk membrane in the tweeter chassis. The resulting perfection in music reproduction is breathtaking.

All speakers of the ONE-SQ series ensure brilliant highs, impressive voice reproduction and the highest precision in the fundamental range.

---

Overview Gladen 100.2 MB-SQ

Vehicle specific 2-way partially active system for Mercedes C / E / GLC (W 205 and similar)

• High pass from 250 Hz, to be separated via amplifier or DSP

Midrange woofer:

• 100 mm midrange **
• Neodymium magnet
• Aluminum cone
• Cast metal basket
• Vehicle specific mounting points
• For semi-active operation in combination with woofer GA-ONE200MB-SQ

Tweeter:

• 25 mm fabric tweeter
• Neodymium magnet
• Vehicle specific mounting (click-lock)

Crossover:

• Tuned crossover
• High quality components such as air core coils
• PTC tweeter protection
• Plug & Play without damaging the wiring harness in the vehicle
• Insulation by shrink hose
• Compact design

** Recommended crossover frequencies for the midrange driver: high pass 250 Hz – 500 Hz , 24 – 12 dB/Oct

Manual Gladen 100.2 MB-SQ (PDF)
