Description

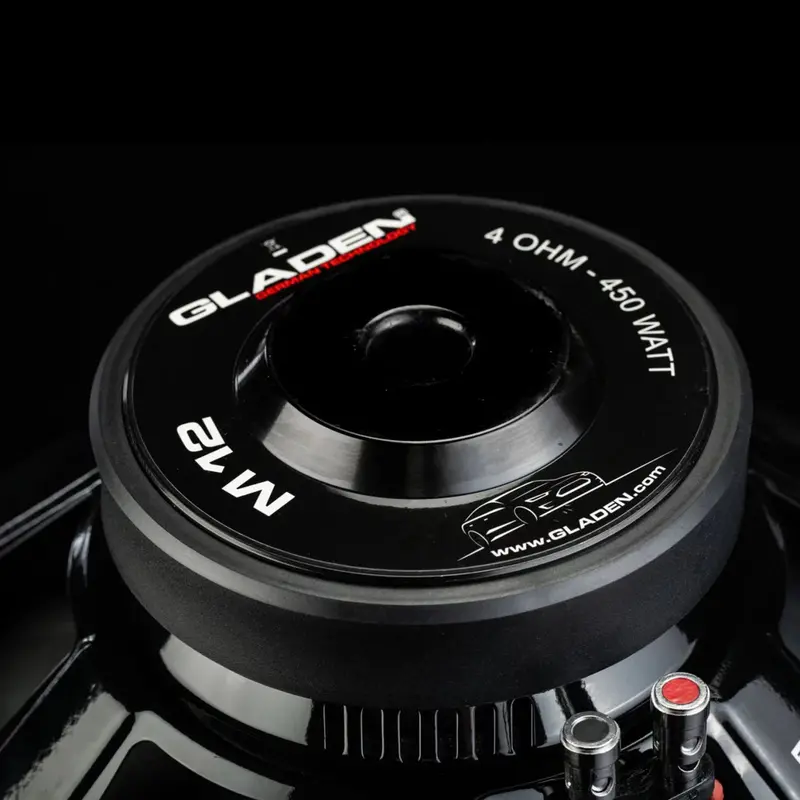

Gladen M 12

• 30 cm / 12″
• Power handling: 450 / 300 Watts
• 4 Ohm impedance
• 2″ voice coil

---

Overview Gladen M-Line M 12

• Woofer with high efficiency
• Black nomex spider
• Scooped paper cone
• PP dust-cap
• Also available as cabinet subwoofer: GA-M12-VB

---

Technical Data Gladen M-Line M 12

Material:

• Cone:

  Paper

• Spider:

  Nomex

• Surround:

  Rubber

• Coil former:

  Aluminium

• Basket:

  Steel

• Dust Cap:

  PP

---

Specifications:

• DC resistance (Rdc):

  3,2 Ω

• Nominal impedance (ZN):

  4 Ω

• Resonance frequency (fs):

  29,2 Hz

• Voice coil diameter:

  2,0 inch

• Mechanical Q factor (Qms):

  4,32

• Electrical Q factor (Qes):

  0,41

• Total Q factor (Qts):

  0,37

• Moving mass (Mms):

  113,2 g

• Effective piston area (Sd):

  490 cm²

• Mechanical resistance (Rms):

  0,63 kg/s

• Compliance (Cms):

  0,31 mm/N

• Force factor (BL):

  12,2 Tm

• Equivalent air volume (Vas):

  112,1 dm³

• SPL 2,83V/1m:

  92,2 dB

---

Download

Datasheet Gladen M-Line M 12 (PDF)
