Description
The SX4.1000 produces an impressive 250 Watts across its 4 channels, contained within a mere 32 square inches. This 1000 watt multi-channel amplifier can wired to deliver a robust 2×250 watts output to the mids and highs, plus an additional 500 watts dedicated to the low-end of a subwoofer. The SX4.1000 is the ultimate solution for any rugged duty system design.
The SX amplifiers are IPX67 waterproof-rated designs with higher output levels tailored for environments with elevated noise levels. Their increased output power and enhanced fortitude is achieved through the integration of cast aluminum end panels, aluminum bottom panels and preamp controls with protective plexi covers.
Features
- IPX67 Rated: Dust Tight and High Water Resistance
- High Level Inputs
- 12dB/Oct High Pass/Low Pass xovers
- Heavyweight DD Aluminum Chassis
- Aluminum End Panels and Bottom Panel
- 8 AWG Power Terminals

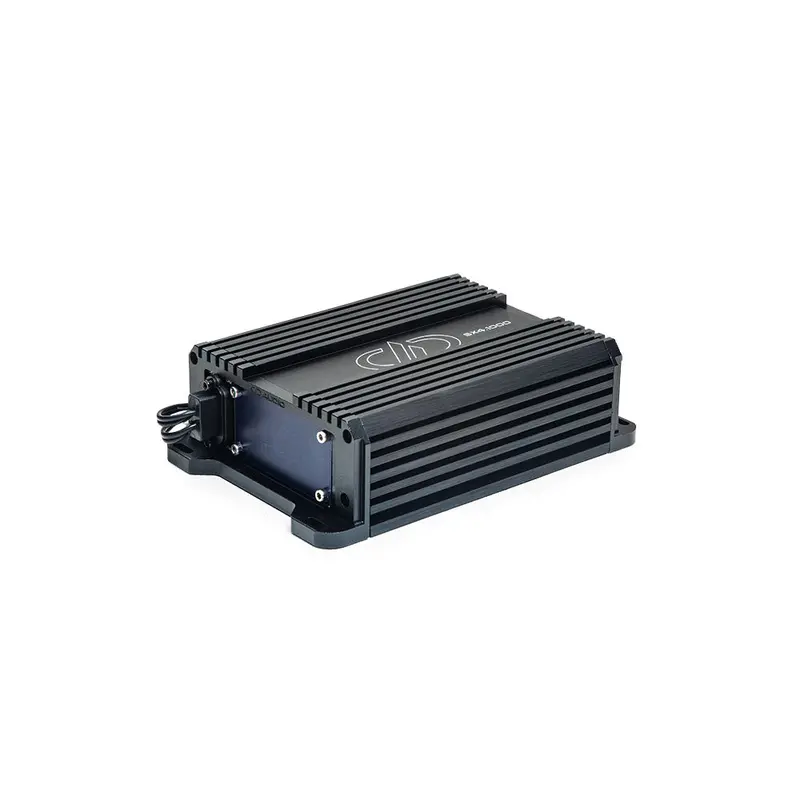

SX4.1000: 1000 Watt – 4 Channel Amplifier
| Operating Voltage: | 9 – 16 |
| Test Voltage: | 14.4 |
| Input Channel(s): | 4 |
| Output Channel(s): | 4 |
| Continuous Wattage @4ohm: | 150 x 4 / 500 x 2 |
| Continuous Wattage @2ohm: | 250 x 4 |
| Max Current Draw (Amps): | 100 |
| RCA Input Voltage Sensitivity: | 10 – 0.4 |
| High-Level Input Voltage Sensitivity: | 10 – 0.4 |
| RCA Input S/N: | > 85 |
| Damping Factor: | > 70 |
| THD: | < 0.1% |
| Frequency Response (Hz): | 10 – 20k |
| High Pass Filter: | 50 – 5k |
| Low-Pass Filter: | 50 – 5k |
| Power Wire Gauge: | 8 |
| Speaker Wire Gauge: | 16 |
| Dimensions (Inches): | 7 x 4.5 x 2 |
| Dimensions (MM): | 178 x 115 x 50 |
| Price (USD): | 399 each |
Resources
-
Product Manual
